    Here's Mad's Benchmark load through my 20" Hbar Olympic, 50 yards iron sights, off sand bags. The ejection pattern was right, slightly rearward. The rounds ended up in one pile. Clean burning.





    Jeff

  2. #22
    Senior Member madgunsmith's Avatar
    Join Date
    Oct 2004
    Posts
    1,797
    As you can see from Jeff's target, Benchmark produces uniform results.

    Now let's discuss the pictures. In the last picture, you can see the Dillon Cartridge case headspace guage. You can see that it resembles the chamber of a gun. You can also see in the picture that one end of the chamber is stepped. The case chambered within the guage must sit slightly higher than the stepped portion of the guage. The case must also sit flush with the non-stepped part of the guage. You simply run your finger over the stepped portion of the guage and you should be able to feel the case head sitting ever so slightly above the surface of the guage.

    The other headspace guage picture shows a case inside the Dillon tool. This view is from the top of the guage. And as you can see, the case does not protrude from the guage. Thus we can tell that this case does not need to be trimmed.

    The other pictures show the Dillon primer pocket swaging tool. The black projection that you see on the right side of the tool is the swager. When you lower the operating handle, the swager pushes forward. And in the pictures, you can also see the steel rod that I mentioned earlier. The case sits upon the steel rod and the rod is lowered so that the primer pocket lines up with the swager. When the operating handle is lowered, the swager gets jammed into the primer pocket and the primer crimped is removed.

    Now all of this may sound convoluted, but trust me it is easy. Even my cat can figure it out.

    Just look at the pictures and don't be discouraged. And if you print out my ravings and read them in conjunction with the instructions that come with the various tools, then you will be ok. And please feel free to send me a PM. I would be glad to explain things further.


    Mad.

  3. #23
    Senior Member madgunsmith's Avatar
    Join Date
    Oct 2004
    Posts
    1,797

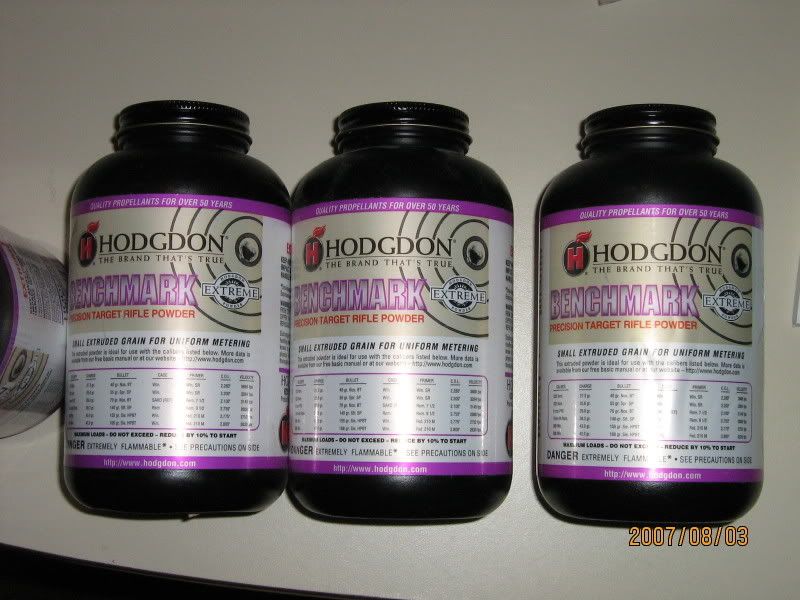

    I just sent Jeff two more pictures. The first picture shows some of the Benchmark that I used.

    The second picture shows the Dillon headspace guage in use. Notice how the cartridge case fits neatly into the die. The case fits slightly above the stepped surface of the guage. The case also fits flush with the non stepped area of the guage.

    I should also mention that the Dillon headspace guage is also made in .308 caliber. You can use all the techniques I've recommended to also load military .308 brass. The Dillon Primer Pocket Swaging Tool will also work for swaging military .308 brass. And of course you can also get a .308 trim die too.

    I will be away for a few days and then we will load a few rounds and I will
    show how the seating die is adjusted and how the Lee Factory Crimp die works. And at the end of my long harangue, I want to hear from you. Of course, I wiill also post the part numbers of all the equipment used and where you can buy these items.

    Mad.

  4. Remove Advertisements
    SniperForums.com
    Advertisements


  5. #24

    Join Date
    Apr 2006
    Posts
    5,043
    More of Mad's pics.






    Jeff

  6. #25
    Senior Member madgunsmith's Avatar
    Join Date
    Oct 2004
    Posts
    1,797
    You should also check out this article:

    http://www.6mmbr.com/223Rem.html


    Mad

  7. #26
    Senior Member JCinPA's Avatar
    Join Date
    Apr 2007
    Posts
    1,176
    Hey, Mad, you thinking of doing one of these for 7.62X39? Don't want to start a sh!tstorm of a rifle debate, but I've relegated my AR-15 to fun and plinking use. My SHTF rifle is an AK-47. Let's leave that argument to the rifle forums, OK? :lol: .

    Wondering if the AK cartridge would be any different. I'd start off by buying 1,000 rounds of Federal American Eagle 7.62X39 at ammoman.com, then reload the cases as I shoot them.

    I want 1,000 rounds of my "base" rounds, the 7.62X39 and .45ACP. My other stuff I can keep in smaller quantities. Prolly should have 1,000 9mm, too, even though I don't shoot it much. That could be for 'sharing'.

    John

  8. #27
    Senior Member madgunsmith's Avatar
    Join Date
    Oct 2004
    Posts
    1,797
    The other day I had an idea. I decided to use my RCBS precision mic to measure my sized cases. Recall that I sized the cases to exactly fit inside my Dillon headspace guage.

    Cases sized to fit inside the Dillon headspace guage measured "zero" inside the RCBS precision mic.

    This tells me that if you size your brass to fit inside the Dillon guage, your cases will be sized for absolutely minimum headspace. ( "Headspace Zero") Cases so sized will fit into any .223 chamber.

    I measured fired cases from one of my rifles and they measure +3. This means that the headspace of this rifle is three thousanths over the minimum. Ammo sized in my die will expand by three thousanths in this rifle.

    The RCBS precision mic told me several things:

    1. The rifle has safe headspace;
    2. The Dillon headspace guage works exactly as advertized. If a round will fit inside the Dillon guage it will fit in any .223 chamber.
    3. Brass expands by .003" inside my rifle.

    Now for loading .308 ball ammo, I recommend that the Dillon headspace guage be used in order that the sized cases are all at headspace zero.


    Mad.

  9. #28
    Senior Member madgunsmith's Avatar
    Join Date
    Oct 2004
    Posts
    1,797
    It is possible to swage one's own jacketed bullets. Check out this thread. Now understand that I have never swaged even one bullet. But this idea is food for thought.


    http://www.ar15.com/forums/topic.html?b=1&f=9&t=586718

  10. #29
    Senior Member Stormrider's Avatar
    Join Date
    Feb 2006
    Location
    Casper, WY
    Posts
    1,853
    Quote Originally Posted by madgunsmith
    It is possible to swage one's own jacketed bullets. Check out this thread. Now understand that I have never swaged even one bullet. But this idea is food for thought.


    http://www.ar15.com/forums/topic.html?b=1&f=9&t=586718
    If you are interested in this, these are the people that started it all:
    http://www.corbins.com/
    Hidden Content
    ______________________
    NOBAMA

  11. #30
    Member
    Join Date
    Sep 2007
    Posts
    30
    NOV/2007 Shooting Times magazine has a good write-up on swagging .223 with spent .22LR cases and lead wire. It is probably alot of the same info as AR15.com Also just my 2 cents on .223 reloading, I NEVER crimp and have had no feed/jamb issues in my AR15.
